In locations susceptible to earthquakes, ensuring safety and security within building structures is crucial. With regards to materials, one must select appropriate ones, and Bhrata Earthquake Resistant TMT bars are excellent options in such scenarios.
Due to India's continued growth in infrastructure development, especially in regions at high risk of earthquakes, there has been an increased demand for TMT bars suitable for such areas.

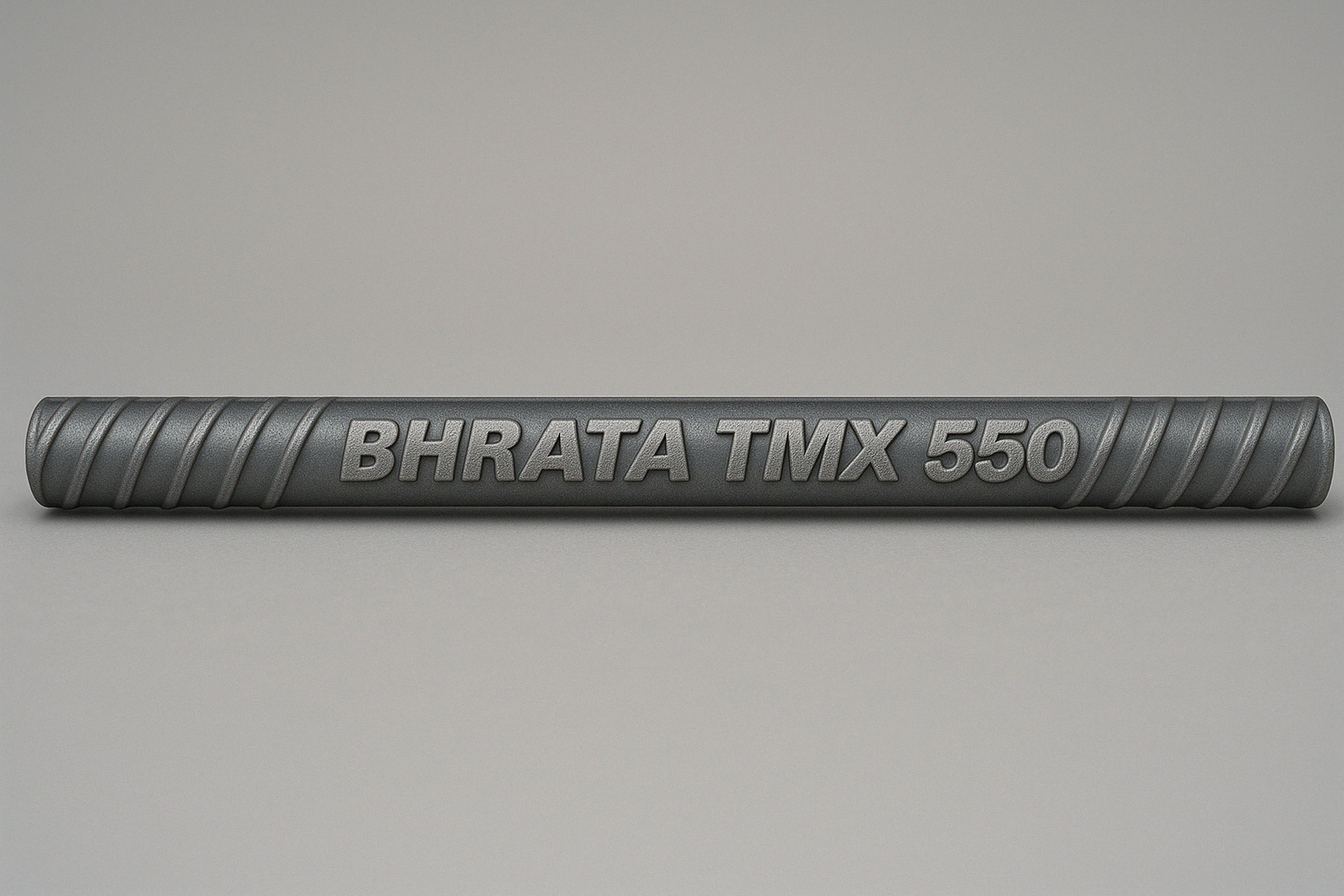

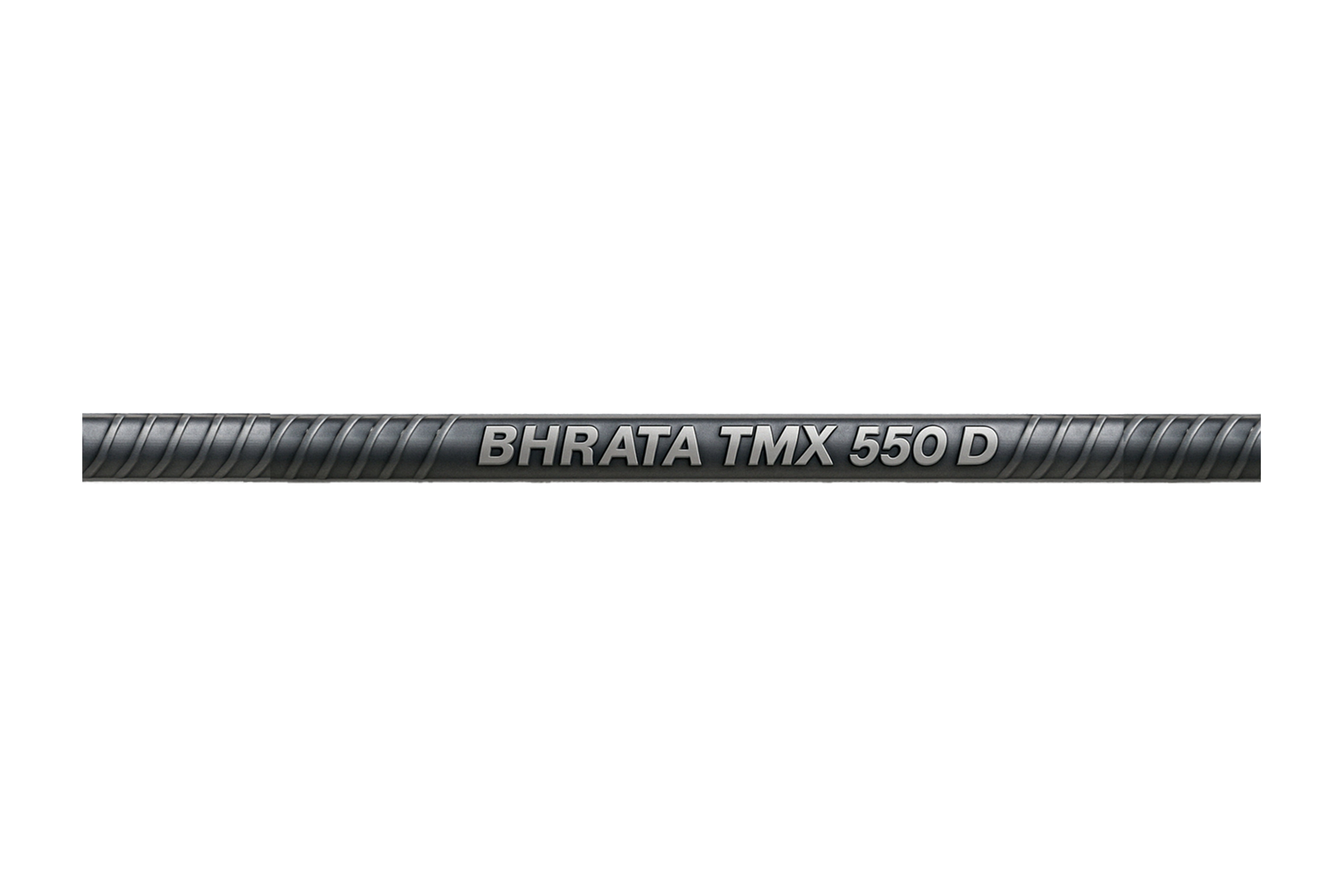

| ELEMENT | FE 550 | FE 550 D | FE 600 | |||
|---|---|---|---|---|---|---|
| BIS | BHARATA TMX 550 | BIS | BHARATA TMX 550 D | BIS | BHARATA TMX 600 | |
| CARBON% | 0.30 | 0.25 | 0.25 | 0.24 | 0.25 | 0.22 |
| SULPHUR% | 0.055 | 0.050 | 0.040 | 0.040 | 0.040 | 0.035 |
| PHOSPHORUS% | 0.050 | 0.040 | 0.040 | 0.035 | 0.040 | 0.035 |
| S+P% | 0.100 | 0.090 | 0.075 | 0.070 | 0.075 | 0.070 |
| GRADE | FE 550 | FE 550 D | FE 600 | |||
|---|---|---|---|---|---|---|
| BIS | BHRATA TMX | BIS | BHRATA TMX | BIS | BHRATA TMX | |
| YIELD STRESS | 550 | 570 | 550 | 570 | 600 | 620 |
| TENSILE STRESS-UTS | 585 | 630 | 600 | 630 | 660 | 670 |
| UTS/YS RATIO | 1.06 | 1.01 | 1.08 | 1.06 | 1.06 | 1.08 |
| ELONGATION % | 10 | 14.5 | 14.5 | 16 | 10 | 12 |
| TOTAL ELONGATION AT MAX FORCE% | - | - | 5 | 6 | - | - |
| TEST | FE 550 | FE 550 D | FE 600 | |||
|---|---|---|---|---|---|---|
| BIS | BHRATA TMX 550 | BIS | BHRATA TMX 550 D | BIS | BHRATA TMX 660 | |
| BEND UPTO 20MM | 5 D | 4 D | 4 D | 4 D | 5 D | 5 D |
| BEND OVER 20MM | 6 D | 5 D | 6 D | 5 D | 6 D | 5 D |
| RE-BEND UPTO 10MM | 7 D | 8 D | 6 D | 6 D | 7 D | 7 D |
| RE-BEND OVER 10MM | 8 D | 7 D | 7 D | 7 D | 8 D | 8 D |
| Specific Weight | BIS Standard | BHRATA TMX | |
|---|---|---|---|
| SIZE MM | Kg/Mtr. | Kg/Mtr. | Kg/Mtr. |
| 8 MM | 0.395 | 0.367-0.423 | 0.368-0.393 |
| 10 MM | 0.617 | 0.574-0.660 | 0.575-0.610 |
| 12 MM | 0.888 | 0.844-0.960 | 0.845-0.935 |
| 16 MM | 1.580 | 1.501-1.659 | 1.502-1.570 |
| 20 MM | 2.470 | 2.396-2.544 | 2.400-2.435 |
| 25 MM | 3.850 | 3.735-3.965 | 3.740-3.820 |
| 28 MM | 4.850 | 4.687-4.975 | 4.700-4.810 |
| 32 MM | 6.310 | 6.121-6.499 | 6.150-6.250 |
| 40 MM | 9.860 | 9.564-10.165 | 9.564-10.155 |
When an earthquake hits, it slams a lot of unexpected force into buildings, which can cause a collapse if the materials are not up to the mark. Standard steel bars can be a bit too stiff and brittle in such situations, making cracks and collapse more likely.
Bhrata Seismic TMT bars, on the other hand, are the perfect solution to this problem. They can bend without breaking because of their superior ductility, which reduces damage and helps save lives. In places that are prone to earthquakes, using fire and earthquake resistant steel bars is not just a good idea - it's a must.
In addition to that, modern construction standards and building codes make a big point of using high-quality materials that meet seismic safety requirements. Investing in earthquake resistant steel is a long-term investment that not only saves you money in the long run, but also makes your building safer and less prone to damage.
We follow a special manufacturing process, called Thermo-Mechanical Treatment (TMT) to manufacture Earthquake resistant TMT bars. This process creates a tough outer layer and a more yielding inner part, which gives you a perfect balance of strength and flexibility.
When seismic forces come to bear on a structure, here's what happens:
This is what enables seismic resistant steel bars to spread out that energy really well, and stops sudden collapse from happening. As a result, buildings that use Bhrata seismic TMT bars are generally better equipped to deal with all the shocks and after-shocks that come with earthquakes.
Ductility is just about the most important thing about earthquake resistant steel. It means these TMT bars can stretch a long way without breaking, giving buildings that extra bit of room to deform safely under stress rather than coming crashing down.
Through flexibility, the Bhrata TMT bars will be prevented from breaking as a result of the consistent shaking that is a consequence of the seismic forces acting on the structure. This maintains the structural integrity of the building despite being exposed to consistent shaking.
Though relatively light in weight, these steel bars have high resistance, which means that you will have all the necessary strength in the building while avoiding additional weight on your building.
The ribbing provided by the steel bars will improve their bonding properties with the concrete, providing uniform distribution of loads and eliminating the likelihood of having fragile joints within the structure.
Bhrata Earthquake resistant steel bars also have excellent anti-corrosive properties that increase their lifetime even in extreme conditions.
Our steel bars can easily resist extremely high temperatures without any structural changes. They will offer adequate protection against the effects of both fires and earthquakes.
Here are some of the areas where you can expect to see them:
When constructors and engineers recognize the risk they face in developing projects in such areas, they realize the importance of acquiring the right TMT bars in earthquake-prone regions in India, as they are imperative when it comes to meeting certain safety requirements.
In the case of highly susceptible areas, normal TMT bars might not serve the intended purpose, but they are more than suitable for use in low-risk areas. However, the additional benefits they provide in areas prone to earthquakes make them worth the extra money in terms of cost.
Are you searching for the best Earthquake Resistant TMT Bar manufacturer in Gujarat and Rajasthan? Then contact Bhrata TMX, we provide innovative TMT bar solutions for your important projects. Our products are manufactured using the latest thermo mechanical process to offer great strength, durability and flexibility. These are ideal for your construction projects as they are anti-corrosive and offer strong bonds with concrete. Contact Bhrata TMX to get best customer support and lifelong product quality at market leading prices. Contact us today.
